AG-09 Magnetic Switch Sensor

AG-09 series magnetic sensor

The new AG-09 series magnetic switch sensor is suitable for AIRTAC 7.1*3.2 L-slot cylinder and can replace AIRTAC DS1-J. The casing is reduced and optimized, which increases the layout space and avoids collision. It is the preferred switch magnetic sensor sensor for short-stroke L-slot cylinders.


ag 09 magnetic switch sensor 01
ag 09 magnetic switch sensor 02

Specification of AG-09 Magnetic Switch Sensor

ModelAG-09 DFAG-09 NAG-09 P
Switching LogicNormally OpenSolid State Output, Normally Open
Output Type2 Wire Solid StateNPN Current SinkingPNP Current Sinking
Voltage Range10~30V DC5~30V DC
Sensor Current1~50 mA0~100 mA
Switch Rating1.5 W Max.3W Max.
Consumption/3 mA Max.@24V
Voltage Drop2.65V Max.@50mA DC0.8V Max.@100mA DC
Leakage Current90 μA Max.@28V0.01 mA Max.
IndicatorRed LEDRed LEDGreen LED
CableΦ2.8, 2C, Grey Oil-Resistant PVCΦ2.8, 3C, Grey Oil-Resistant PVC
Sensitivity40~800 Gauss40~800 Gauss
Sensor Frequency900Hz900Hz
Temperature-10~70℃-10~70℃
Shock50G50G
Vibration9G9G
Ingress ProtectionIP68 (GB/T4208-2017)IP68 (GB/T4208-2017)
Protection CircuitSurge SuppressionPower Reverse Polarity; Surge Suppression
CE Certificate NO.E8A 17 04 53334 007E8A 17 04 53334 008
CNEx Certificate NO.CNEx21.2238XCNEx21.2239X
RoHS2.0 NO.RoHS 2011/65/EU & (EU) 2015/863
Reach NO.(EC) N 1907/2006 (REACH)


Features of AG-09 Magnetic Cylinder Sensor

magnetic switch sensor

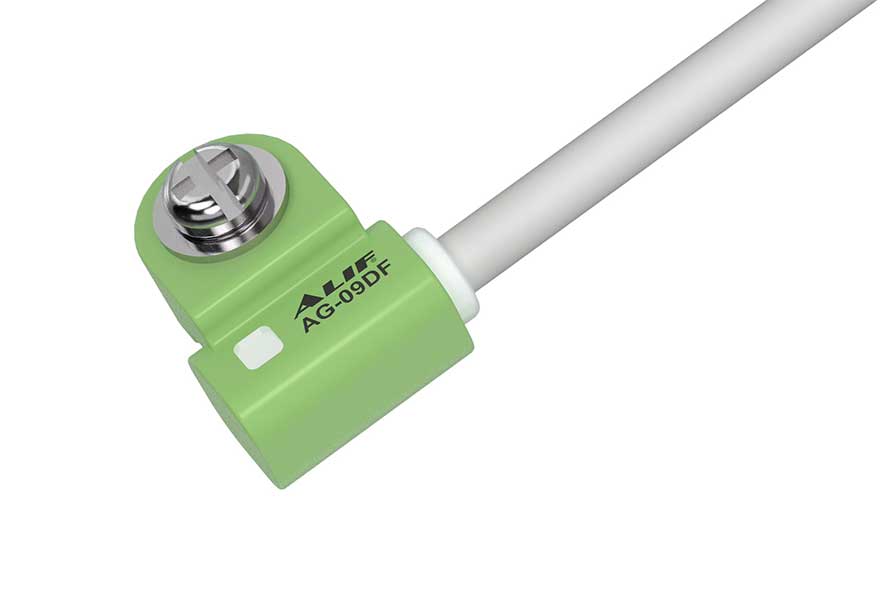

The design of a smaller shell increases the flexibility of the equipment space layout.

sensor magnetic switch

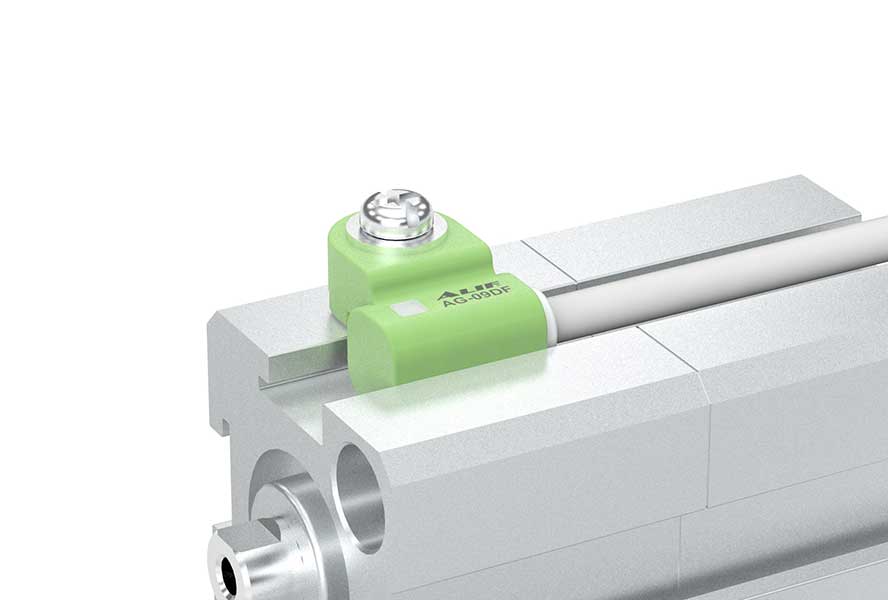

The installation is placed on the top, which reduces the time required for the operator to install and disassemble.

Description of AG-09 Magnetic Cylinder Sensor

magnetic switch sensor
magnetic switch sensor
sensor magnetic switch
sensor magnetic switch
sensor magnetic switch1
sensor magnetic switch1
