AG-49 Magnetic Cylinder Sensor

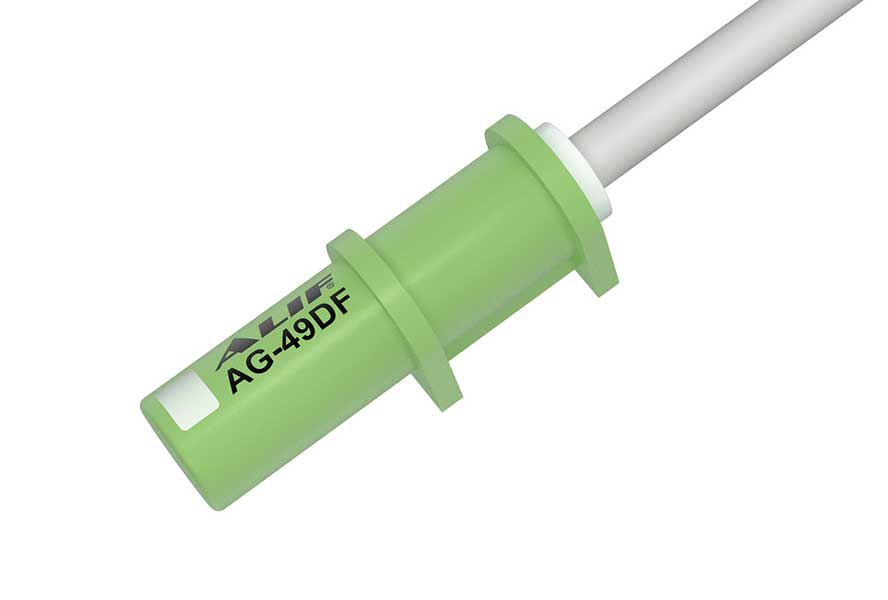

AG-49 series magnetic sensor

AG-49 series is the star product of ALIF, which has been deeply loved by customers since its launch. The matching clamp can be used for standard cylinders such as tie rod, meter type, round, etc. The patented design makes it more suitable for the surface of reed switch sensor pneumatic cylinder, and has the characteristics of convenient debugging and not loosening after installation; high versatility also greatly reduces the pressure of inventory .

hydraulic cylinder magnetic sensor
magnetic position sensor for hydraulic cylinder

Specification of AG-49 Magnetic Cylinder Sensor

ModelAG-49DFAG-49NAG-49P
Switching LogicNormally OpenSolid State Output, Normally Open
Output Type2 Wire Solid StateNPN Current SinkingPNP Current Sinking
Voltage Range10~30V DC5~30V DC
Sensor Current1~50 mA0~200 mA
Switch Rating1.5 W Max.6 W Max.
Consumption/3 mA Max.@24V
Voltage Drop2.65V Max.@50mA DC0.5V Max.@200mA DC
Leakage Current90 μA Max.@28V0.01 mA Max.
IndicatorRed LEDRed LEDGreen LED
CableΦ3.3, 2C, Black Oil-Resistant PVCΦ3.3, 3C, Black Oil-Resistant PVC
Sensitivity60~800 Gauss60~800 Gauss
Sensor Frequency900Hz900Hz
Temperature-10~70℃-10~70℃
Shock50G50G
Vibration9G9G
Ingress ProtectionIP68 (BJ-R200810105A-03)IP68 (BJ-R200810105A-03)
Protection CircuitSurge SuppressionPower Reverse Polarity; Surge Suppression
CE Certificate NO.E8A 17 04 53334 007E8A 17 04 53334 008
CNEx Certificate NO.CNEx21.2238XCNEx21.2239X
RoHS2.0 NO.RoHS 2011/65/EU & (EU) 2015/863
Reach NO.(EC) N 1907/2006 (REACH)


Features of AG-49 Magnetic Cylinder Sensor

magnetic position sensor for hydraulic cylinder

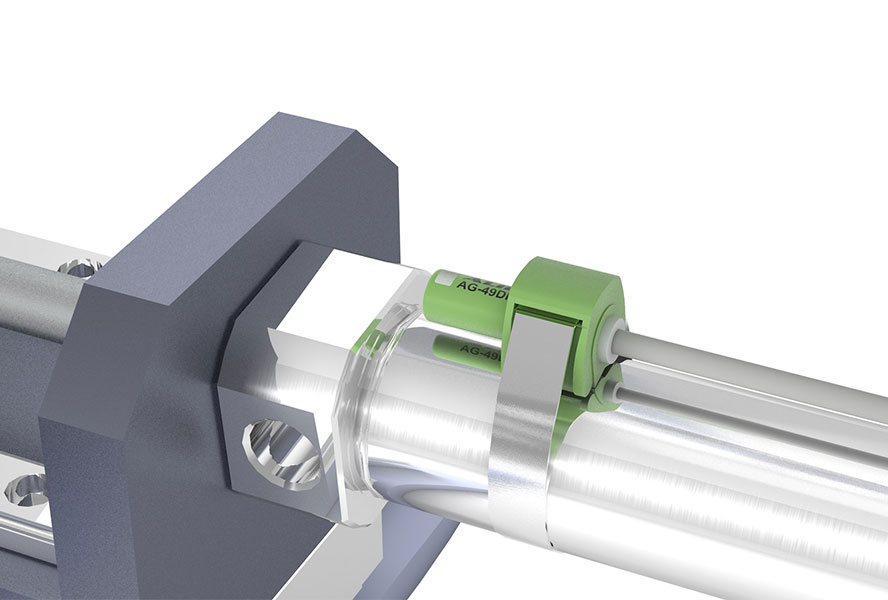

AG-49 has a variety of types of fixtures to match, suitable for a variety of cylinders.

hydraulic cylinder magnetic sensor

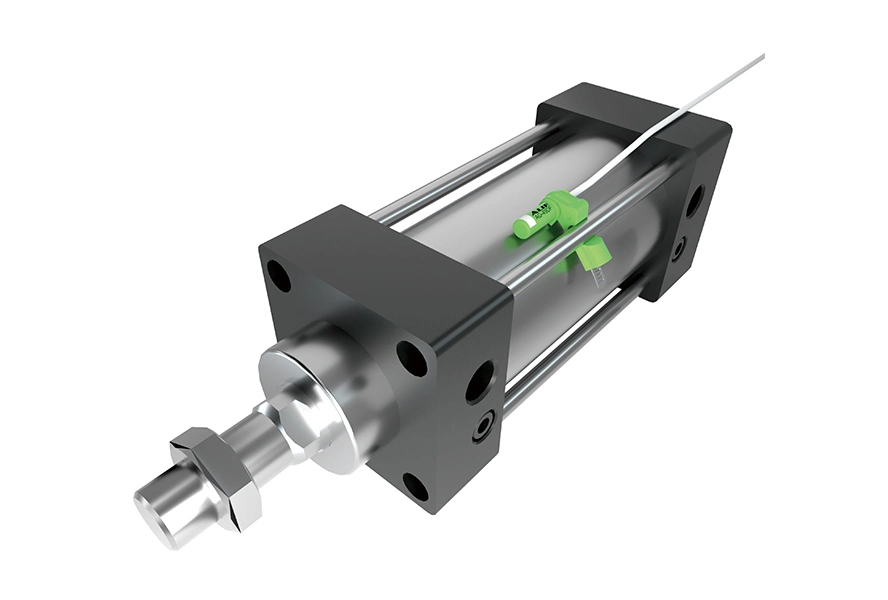

Patented design, the shape perfectly fits the outer wall of the cylinder and is firmly fixed.

Description of AG-49 Magnetic Cylinder Sensor

hydraulic cylinder magnetic sensor
hydraulic cylinder magnetic sensor
magnetic position sensor for hydraulic cylinder
magnetic position sensor for hydraulic cylinder
pneumatic cylinder magnetic sensor
pneumatic cylinder magnetic sensor
