DFGE Magnetic Cylinder Sensor

DFGE series magnetic sensor

DFGE series is suitable for SMC, AIRTAC 6.2*5.4 T-slot cylinder, can replace AIRTAC DS1-E magnetic switch.

hydraulic cylinder reed switch
reed switch for hydraulic cylinder

Specification of DFGE Magnetic Cylinder Sensor

ModelDFGEDFGENDFGEP
Switching LogicNormally OpenSolid State Output, Normally Open
Output Type2 Wire Solid StateNPN Current SinkingPNP Current Sinking
Voltage Range10~30V DC5~30V DC
Sensor Current1~50 mA0~200 mA
Switch Rating1.5 W Max.6 W Max.
Consumption/3 mA Max.
Voltage Drop2.65V Max.@50mA0.5V Max.@200mA
Leakage Current90 μA Max.@24V0.01 mA Max.
IndicatorRed LEDRed LEDGreen LED
CableΦ2.8,2C, Grey Oil-Resistant PVCΦ2.8, 3C, Grey Oil-Resistant PVC
Sensitivity40~800 Gauss40~800 Gauss
Sensor Frequency900Hz900Hz
Temperature-10~70℃-10~70℃
Shock50G50G
Vibration9G9G
Ingress ProtectionIP68 (BJ-R200810105A-04)IP68 (BJ-R200810105A-04)
Protection CircuitSurge SuppressionPower Reverse Polarity; Surge Suppression
CE Certificate NO.E8A 17 04 53334 007E8A 17 04 53334 008
CNEx Certificate NO.CNEx21.2238XCNEx21.2239X
RoHS2.0 NO.RoHS 2011/65/EU & (EU) 2015/863
Reach NO.(EC) N 1907/2006 (REACH)


Features of DFGE Magnetic Cylinder Sensor

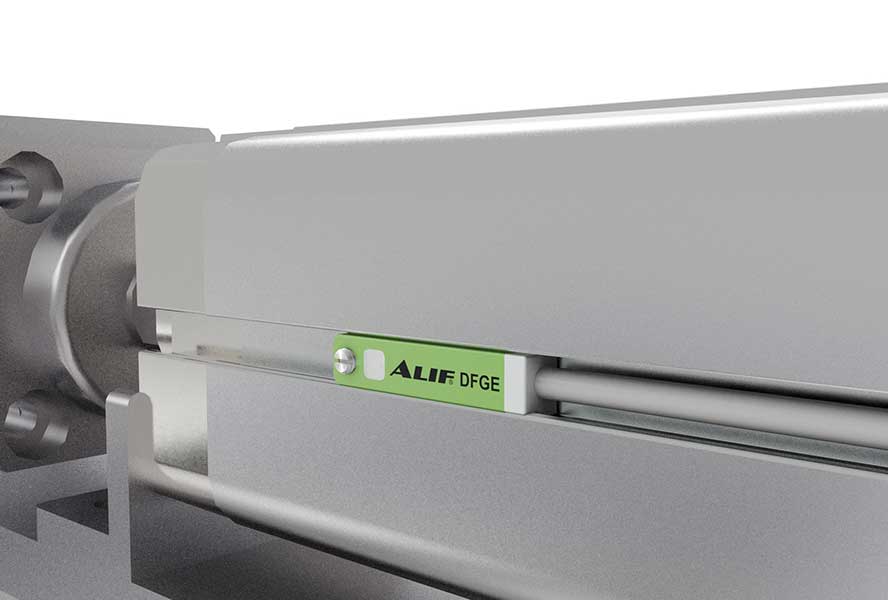

reed switch for hydraulic cylinder

High compatibility, suitable for most T-slot cylinders.

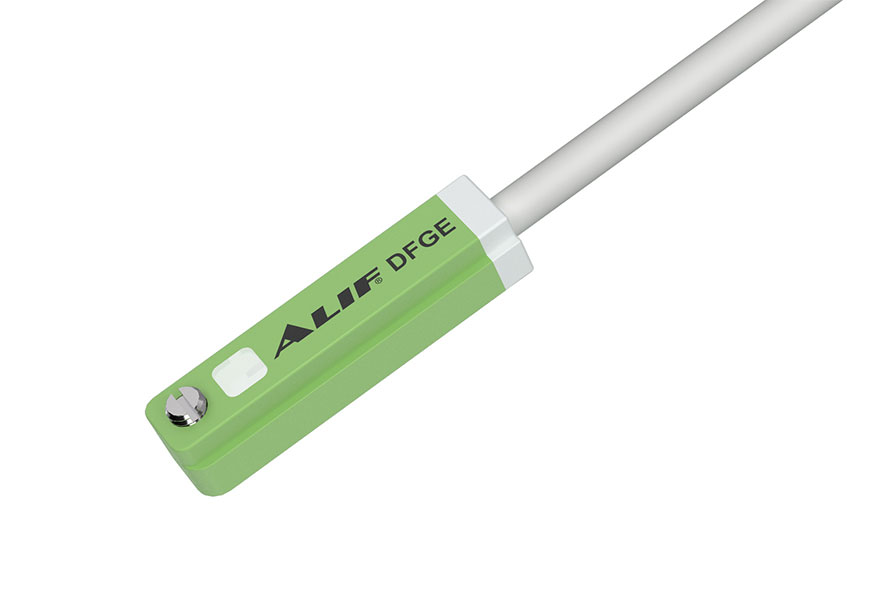

hydraulic cylinder reed switch

Reliable fixing, convenient installation and disassembly, saving operation time.

Description of DFGE Magnetic Cylinder Sensor

hydraulic cylinder reed switch
hydraulic cylinder reed switch
reed switch proximity sensor
reed switch proximity sensor
reed proximity switch
reed proximity switch
