AG-29 Magnetic Cylinder Sensor

Name: AG-29 Magnetic Cylinder Sensor
Brand: ALIF TECH. CO., Ltd.

AG-29 series magnetic sensor

AG-29 series is the smallest magnetic reed switch for cylinder in the world so far. It is suitable for 4φ C-slot cylinder. Although the length is only 8mm, it can withstand 3.5kgF tension without loosening after tightening the screw. The top outlet design makes the equipment wiring more flexible.

Get AG-29 Magnetic Cylinder Sensor Price Document Download

Specification of AG-29 Magnetic Cylinder Sensor

Model	AG-29DF	AG-29N	AG-29P
Switching Logic	Normally Open	Solid State Output, Normally Open
Output Type	2 Wire Solid State	NPN Current Sinking	PNP Current Sinking
Voltage Range	10～30V DC	5～30V DC
Sensor Current	1～50 mA	0～100 mA
Switch Rating	1.5 W Max.	3 W Max.
Consumption	/	3 mA Max.@24V
Voltage Drop	2.65V Max.@50mA DC	0.5V Max.@100mA DC
Leakage Current	90 μA Max.@28V	0.01 mA Max.
Indicator	Red LED	Red LED	Green LED
Cable	Φ2.8, 2C, Grey Oil-Resistant PVC	Φ2.8, 3C, Grey Oil-Resistant PVC
Sensitivity	40～800 Gauss	40～800 Gauss
Sensor Frequency	900Hz	900Hz
Temperature	-10～70℃	-10～70℃
Shock	50G	50G
Vibration	9G	9G
Ingress Protection	IP68 (GB/T4208-2017)	IP68 (GB/T4208-2017)
Protection Circuit	Surge Suppression	Power Reverse Polarity; Surge Suppression
CE Certificate NO.	E8A 17 04 53334 007	E8A 17 04 53334 008
CNEx Certificate NO.	CNEx21.2238X	CNEx21.2239X
RoHS2.0 NO.	RoHS 2011/65/EU & (EU) 2015/863
Reach NO.	(EC) N 1907/2006 (REACH)

Features of AG-29 Magnetic Cylinder Sensor

Miniature exterior design increases the flexibility of equipment space layout.

The top outlet design of this type of pneumatic cylinder magnetic sensor makes the wiring more flexible.

Description of AG-29 Magnetic Cylinder Sensor

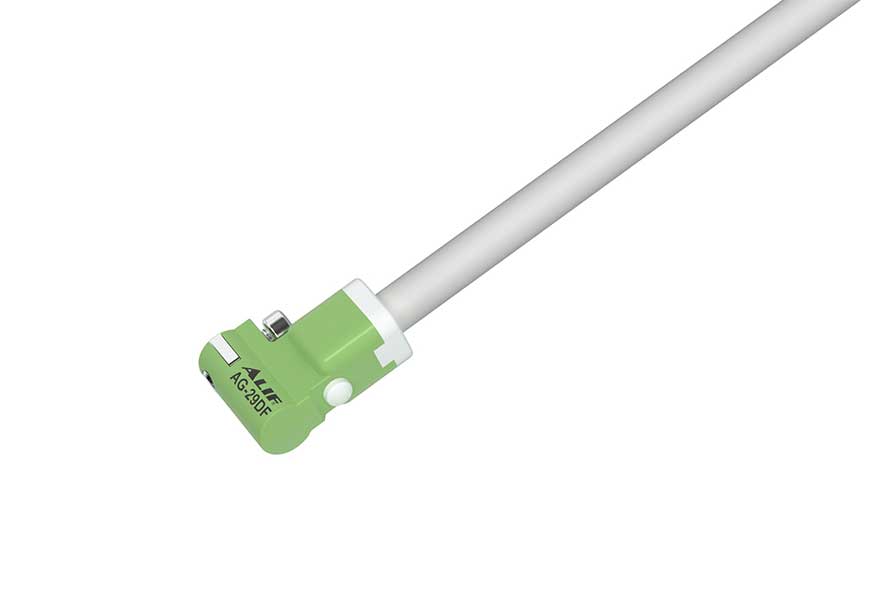

fluxgate magnetic field sensor

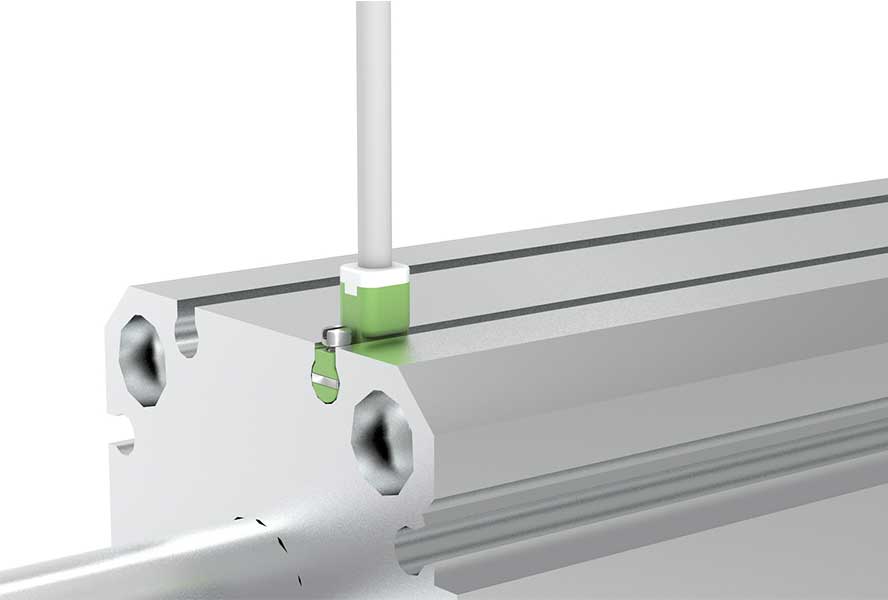

fluxgate sensor applications

pneumatic cylinder magnetic sensor
