DFGG Magnetic Cylinder Sensor

DFGG series magnetic sensor

DFGG series dedicated to AirTAC 4.35*4.55 square groove, can be replaced with AIRTAC DS1-G magnetic sensor.

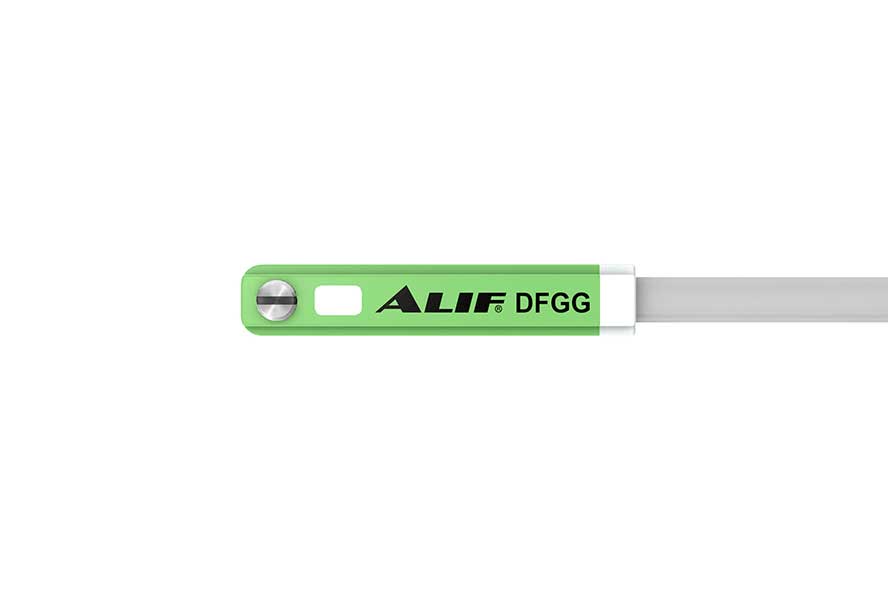

dfgg magnetic cylinder sensor 01

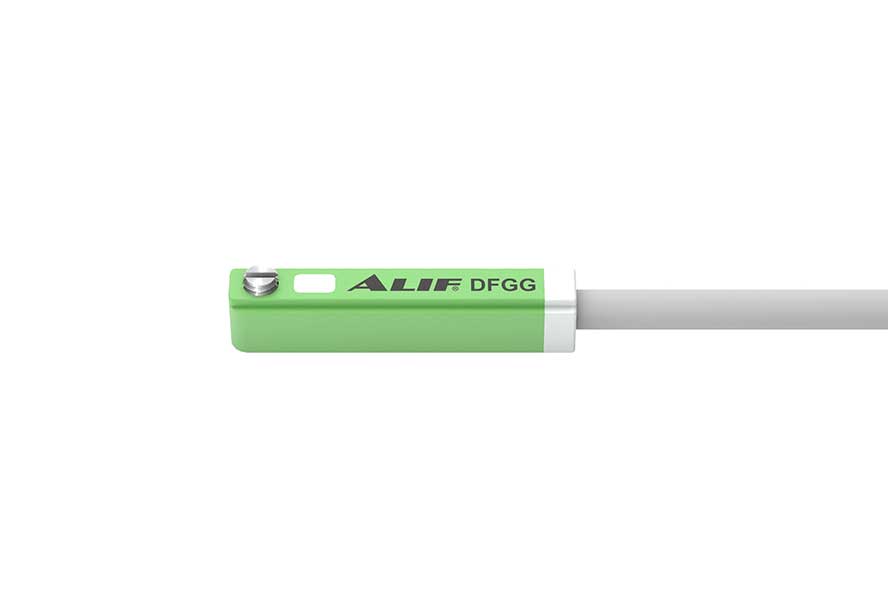

dfgg magnetic cylinder sensor 02

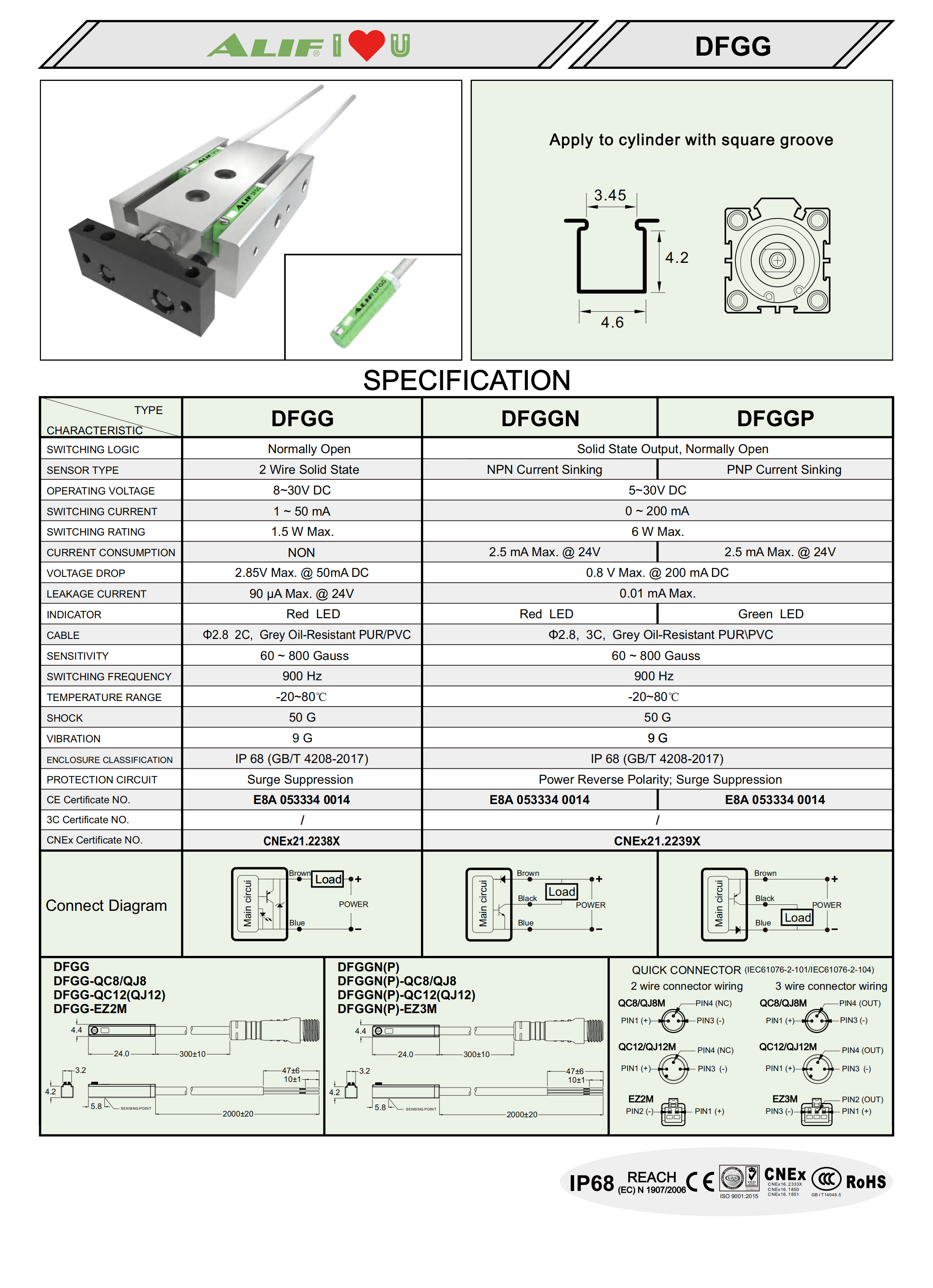

Specification of DFGG Magnetic Cylinder Sensor

ModelDFGGDFGGNDFGGP
Switching LogicNormally OpenSolid State Output, Normally Open
Output Type2 Wire Solid StateNPN Current SinkingPNP Current Sinking
Voltage Range10~30V DC5~30V DC
Sensor Current1~50 mA0~200 mA
Switch Rating1.5 W Max.6 W Max.
Consumption/3 mA Max.
Voltage Drop2.65V Max.@50mA0.5V Max.@200mA
Leakage Current90 μA Max.@24V0.01 mA Max.
IndicatorRed LEDRed LEDGreen LED
CableΦ2.8, 2C, Grey Oil-Resistant PVCΦ2.8, 3C, Grey Oil-Resistant PVC
Sensitivity40~800 Gauss40~800 Gauss
Sensor Frequency900Hz900Hz
Temperature-10~70℃-10~70℃
Shock50G50G
Vibration9G9G
Ingress ProtectionIP68 (BJ-R200810105A-04)IP68 (BJ-R200810105A-04)
Protection CircuitSurge SuppressionPower Reverse Polarity; Surge Suppression
CE Certificate NO.E8A 17 04 53334 007E8A 17 04 53334 008
CNEx Certificate NO.CNEx21.2238XCNEx21.2239X
RoHS2.0 NO.RoHS 2011/65/EU & (EU) 2015/863
Reach NO.(EC) N 1907/2006 (REACH)


Features of DFGG Magnetic Cylinder Sensor

magnetic reed switch

Perfectly match the AIRTAC square groove cylinder and fit closely.

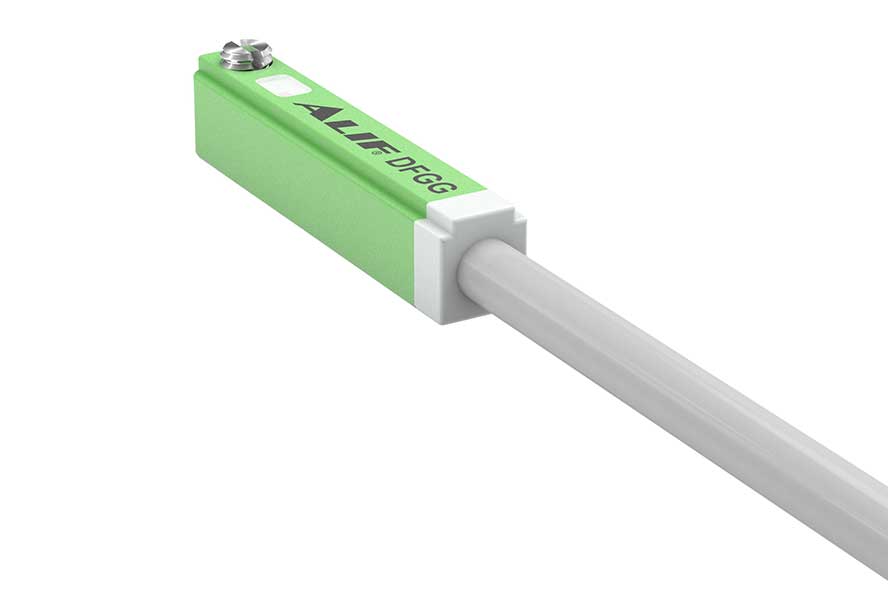

miniature magnetic reed switch

Reliable fixing, convenient installation and disassembly, saving operation time.

Description of DFGG Magnetic Cylinder Sensor

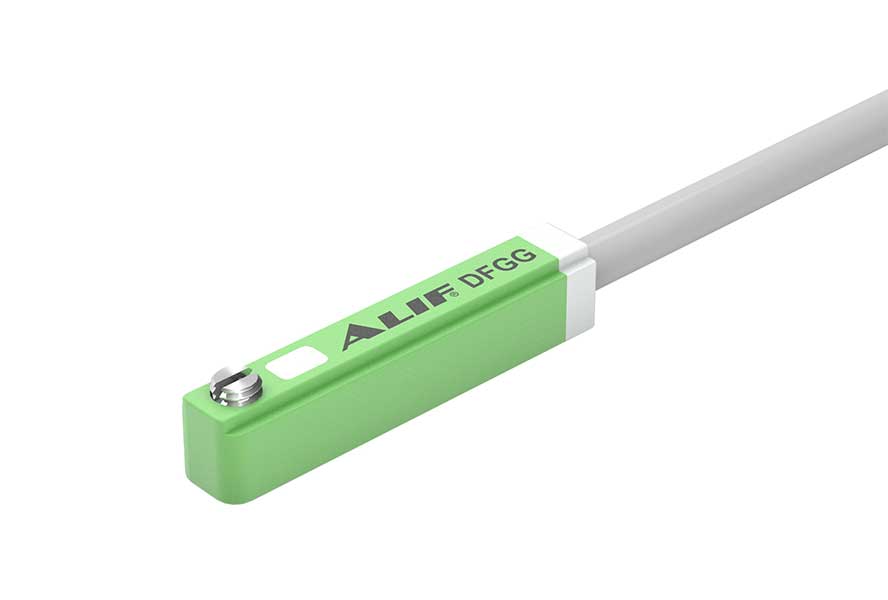

miniature magnetic reed switch
miniature magnetic reed switch
reed switch sensor working principle
reed switch sensor working principle

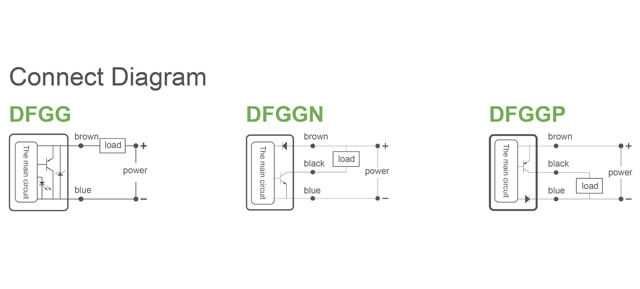

240v magnetic reed switch
240v magnetic reed switch
