AG-27 Magnetic Cylinder Sensor

AG-27 series hydraulic cylinder magnetic sensor

The AG-27 magnetic cylinder position sensor series is suitable for all 4φC-slot cylinders on the market. The unique rotor screw enhances the tightness of the combination with the cylinder, and can withstand 5kgF tension without loosening; the installation method is to directly place the magnetic position sensor for the hydraulic cylinder above the groove. Hydraulic cylinder sensor with cylinder position sensor symptoms saves a lot of loading and unloading time.


ag 27 magnetic cylinder sensor 01
ag 27 magnetic cylinder sensor 02

AG-27 Hydraulic Cylinder Magnetic Sensor Specification

ModelAG-27DFAG-27NAG-27P
Switching LogicNormally OpenSolid State Output, Normally Open
Output Type2 Wire Solid StateNPN Current SinkingPNP Current Sinking
Voltage Range10~30V DC5~30V DC
Sensor Current1~50 mA0~200 mA
Switch Rating1.5 W Max.6 W Max.
Consumption/3 mA Max.@24V
Voltage Drop2.65V Max.@50mA DC0.5V Max.@200mA DC
Leakage Current90 μA Max.@28V0.01 mA Max.
IndicatorRed LEDRed LEDGreen LED
CableΦ2.2, 2C, Grey Oil-Resistant PURΦ2.2, 3C, Grey Oil-Resistant PUR
Sensitivity40~800 Gauss40~800 Gauss
Sensor Frequency900Hz5000Hz
Temperature-10~70℃-10~70℃
Shock50G50G
Vibration9G9G
Ingress ProtectionIP68 (BJ-R200810105A-01)IP68 (BJ-R200810105A-01)
Protection CircuitSurge SuppressionPower Reverse Polarity; Surge Suppression
CE Certificate NO.E8A 17 04 53334 007E8A 17 04 53334 008
CNEx Certificate NO.CNEx21.2238XCNEx21.2239X
RoHS2.0 NO.RoHS 2011/65/EU & (EU) 2015/863
Reach NO.(EC) N 1907/2006 (REACH)


AG-27 Hydraulic Cylinder Position Sensor Features

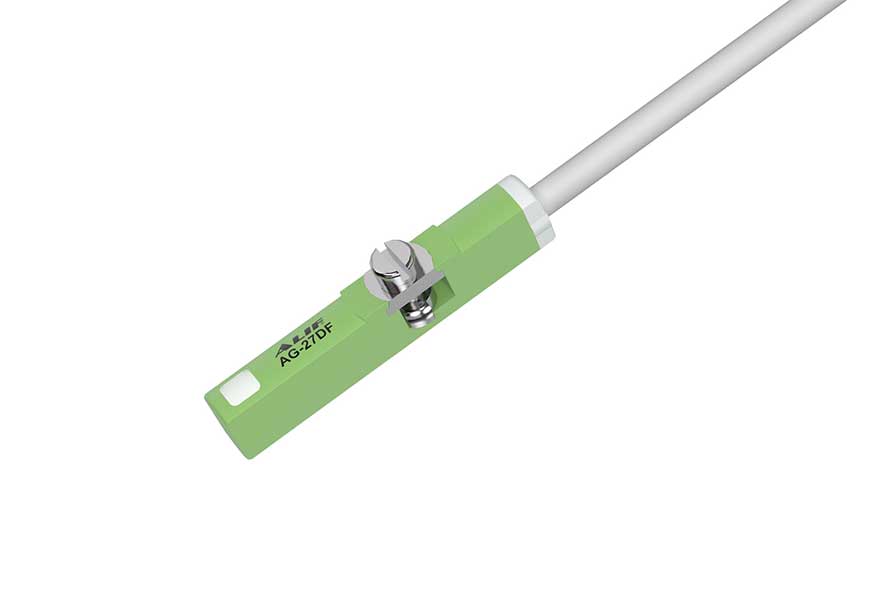

air cylinder position sensor

The unique screw design structure makes ALIF TECH's pneumatic cylinder magnetic sensor fast and easy to install.

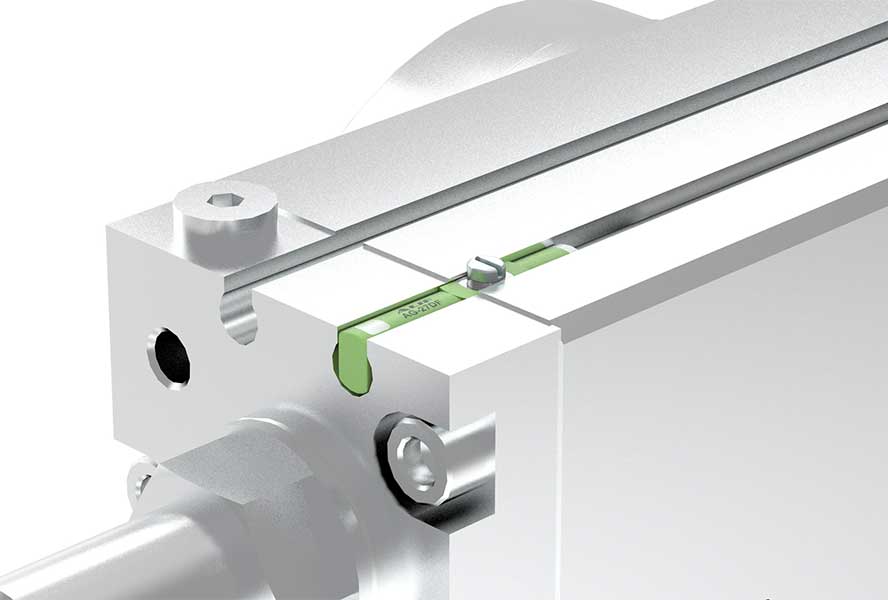

air cylinder sensor

The top outlet design of this magnetic proximity sensor range makes the wiring more flexible during installation.

AG-27 Hydraulic Cylinder Magnetic Sensor Technical Drawings

Hydraulic Cylinder Position Sensor Installation Method
Hydraulic Cylinder Position Sensor Installation Method
Hydraulic Cylinder Magnetic Sensor Technical Drawing
Hydraulic Cylinder Magnetic Sensor Technical Drawing
Magnetic Position Sensor For Hydraulic Cylinder Connect Diagram
Magnetic Position Sensor For Hydraulic Cylinder Connect Diagram
