DFGH Magnetic Cylinder Sensor

Name: DFGH Magnetic Cylinder Sensor
Brand: ALIF TECH. CO., Ltd.

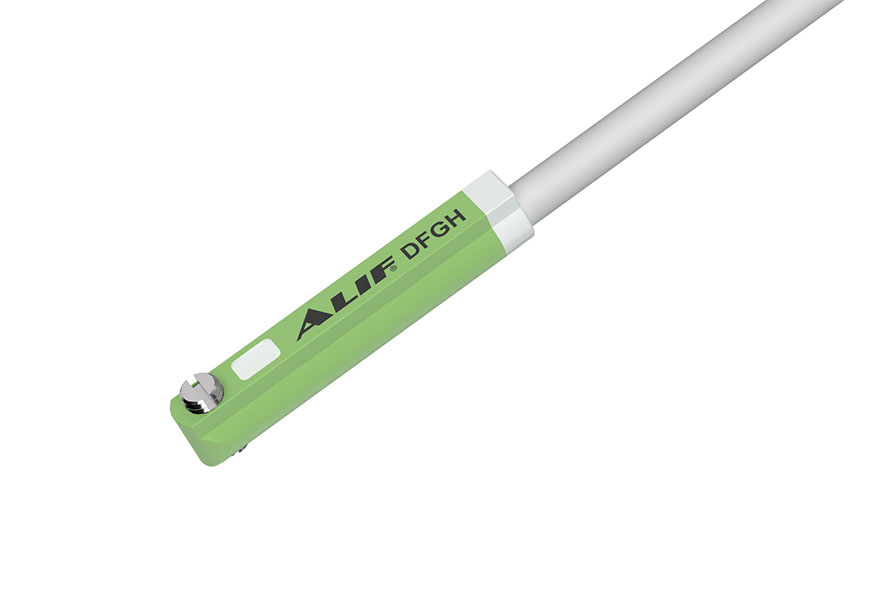

DFGH series magnetic sensor

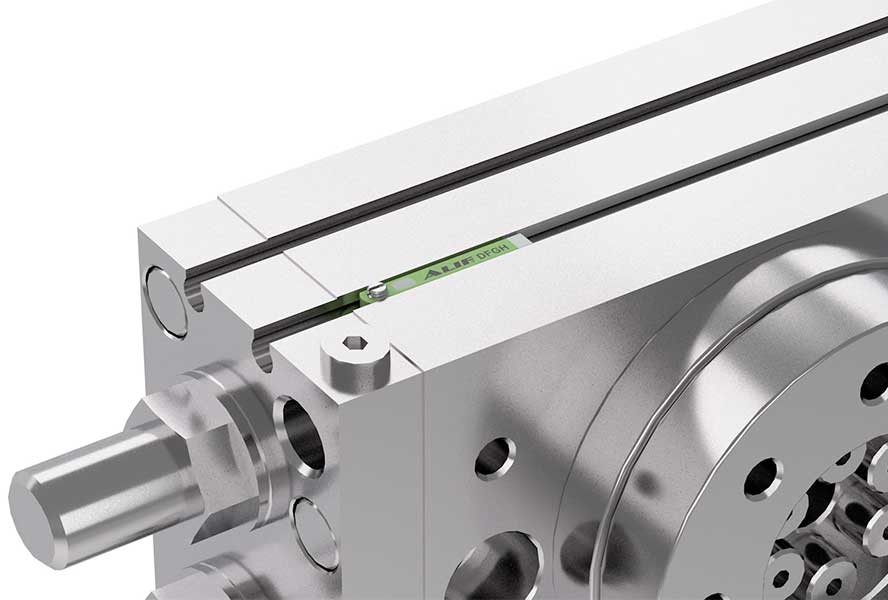

DFGH series is suitable for SMC, AIRTAC 4φ diameter C-shaped groove cylinder, and is generally used for AIRTAC DS1-H magnetic sensor. The arc shape design can effectively reduce the burr blocking in the groove during installation.

Get DFGH Magnetic Cylinder Sensor Price Document Download

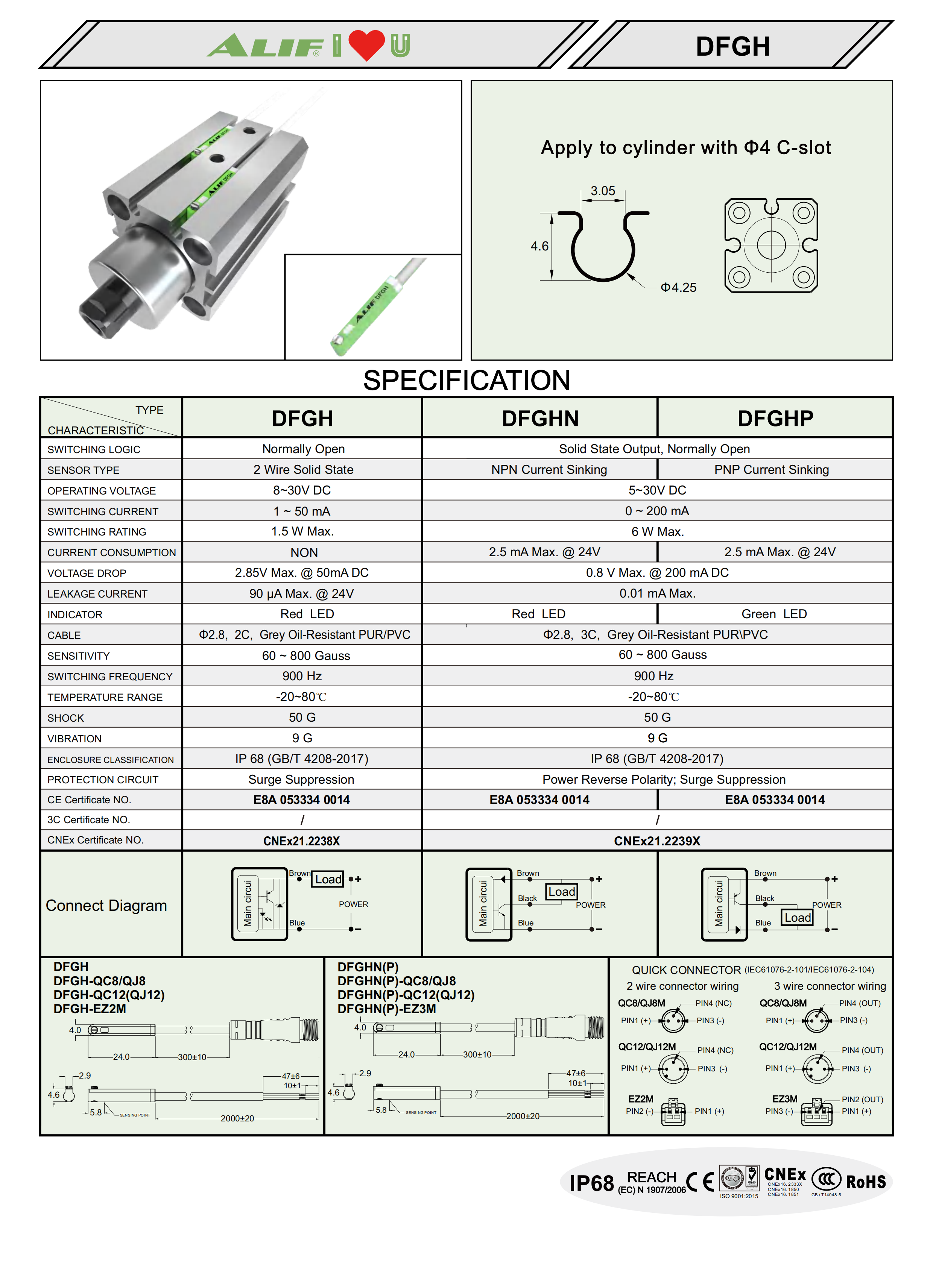

Specification of DFGH Magnetic Cylinder Sensor

Model	DFGH	DFGHN	DFGHP
Switching Logic	Normally Open	Solid State Output, Normally Open
Output Type	2 Wire Solid State	NPN Current Sinking	PNP Current Sinking
Voltage Range	10～30V DC	5～30V DC
Sensor Current	1～50 mA	0～200 mA
Switch Rating	1.5 W Max.	6 W Max.
Consumption	/	3 mA Max.
Voltage Drop	2.65V Max.@50mA	0.5V Max.@200mA
Leakage Current	90 μA Max.@24V	0.01 mA Max.
Indicator	Red LED	Red LED	Green LED
Cable	Φ2.8, 2C, Grey Oil-Resistant PVC	Φ2.8, 3C, Grey Oil-Resistant PVC
Sensitivity	40～800 Gauss	40～800 Gauss
Sensor Frequency	900Hz	900Hz
Temperature	-10～70℃	-10～70℃
Shock	50G	50G
Vibration	9G	9G
Ingress Protection	IP68 (BJ-R200810105A-04)	IP68 (BJ-R200810105A-04)
Protection Circuit	Surge Suppression	Power Reverse Polarity; Surge Suppression
CE Certificate NO.	E8A 17 04 53334 007	E8A 17 04 53334 008
CNEx Certificate NO.	CNEx21.2238X	CNEx21.2239X
RoHS2.0 NO.	RoHS 2011/65/EU & (EU) 2015/863
Reach NO.	(EC) N 1907/2006 (REACH)

Features of DFGH Magnetic Cylinder Sensor

The arc appearance design of this sort of reed switch sensor for cylinder makes the equipment installation smooth and unobstructed, and the operation process.

Strong compatibility, suitable for most 4φ C-slot cylinders.

Description of DFGH Magnetic Cylinder Sensor

reed proximity sensor

reed switch proximity sensor

reed proximity switch
