AG-01 Magnetic Cylinder Pneumatic Reed Switch Sensor

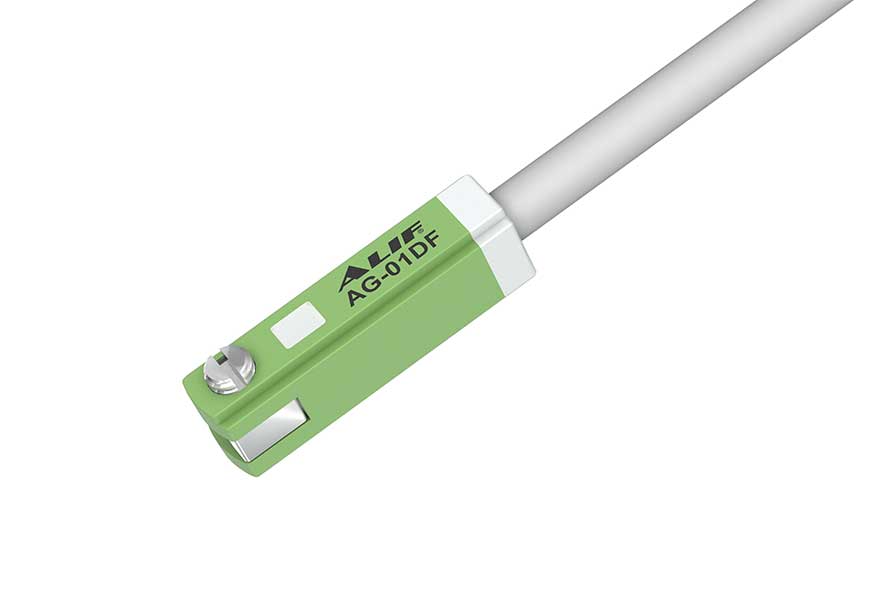

AG-01 series pneumatic cylinder reed switch sensor

The new AG-01 pneumatic reed switch sensor series is suitable for AIRTAC 4.35*4.5 square grooves, which can replace the DS1-G of AIRTAC; the embedded stainless steel nut strengthens the structural strength, making the AG-01 pneumatic cylinder reed switch series more suitable for organic solvents or strong corrosiveness.




pneumatic cylinder magnetic reed switch
pneumatic reed switch

AG-01 Magnetic Reed Switch For Pneumatic Cylinder Specifications

ModelAG-01 DFAG-01 NAG-01 P
Switching LogicNormally OpenSolid State Output, Normally Open
Output Type2 Wire Solid StateNPN Current SinkingPNP Current Sinking
Voltage Range10~30V DC5~30V DC
Sensor Current1~50 mA0~100 mA
Switch Rating1.5 W Max.3W Max.
Consumption/3 mA Max.@24V
Voltage Drop2.65V Max.@50mA DC0.8V Max.@100mA DC
Leakage Current90 μA Max.@28V0.01 mA Max.
IndicatorRed LEDRed LEDGreen LED
CableΦ2.8, 2C, Grey Oil-Resistant PVCΦ2.8, 3C, Grey Oil-Resistant PVC
Sensitivity40~800 Gauss40~800 Gauss
Sensor Frequency900Hz900Hz
Temperature-10~70℃-10~70℃
Shock50G50G
Vibration9G9G
Ingress ProtectionIP68 (GB/T4208-2017)IP68 (GB/T4208-2017)
Protection CircuitSurge SuppressionPower Reverse Polarity; Surge Suppression
CE Certificate NO.E8A 17 04 53334 007E8A 17 04 53334 008
CNEx Certificate NO.CNEx21.2238XCNEx21.2239X
RoHS2.0 NO.RoHS 2011/65/EU & (EU) 2015/863
Reach NO.(EC) N 1907/2006 (REACH)



Pneumatic Cylinder Reed Switch Sensor Features

magnetic reed switch for pneumatic cylinder

The embedded stainless steel nut strengthens the structural strength of the shell and is suitable for organic solvents or environments with strong corrosiveness.

magnetic reed switch for pneumatic cylinder

The design of a more miniature shell increases the flexibility of the layout of the equipment space.

AG-01 Pneumatic Cylinder Reed Switch Sensor Description

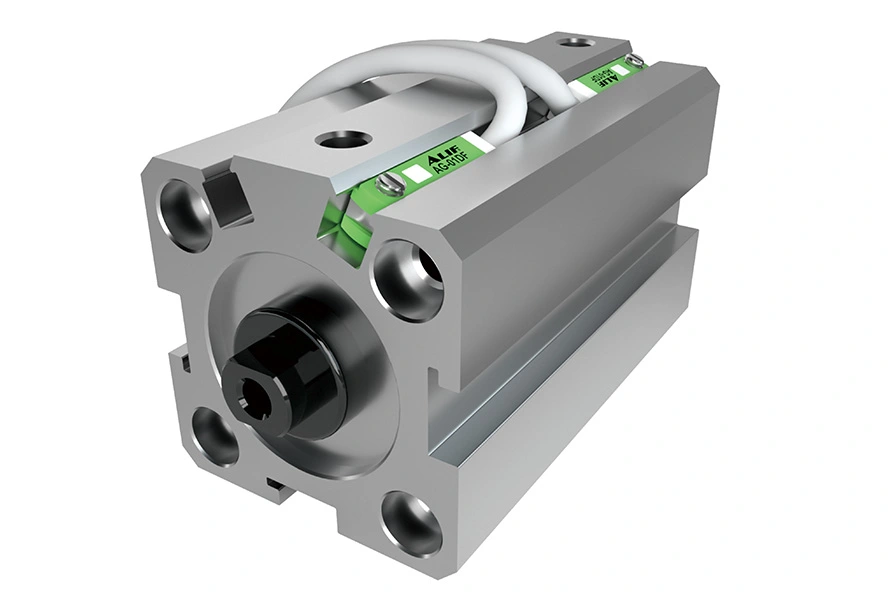

magnetic reed switch for pneumatic cylinder
magnetic reed switch for pneumatic cylinder
pneumatic cylinder magnetic reed switch
pneumatic cylinder magnetic reed switch
