DFGJ Magnetic Cylinder Sensor

Name: DFGJ Magnetic Cylinder Sensor
Brand: ALIF TECH. CO., Ltd.

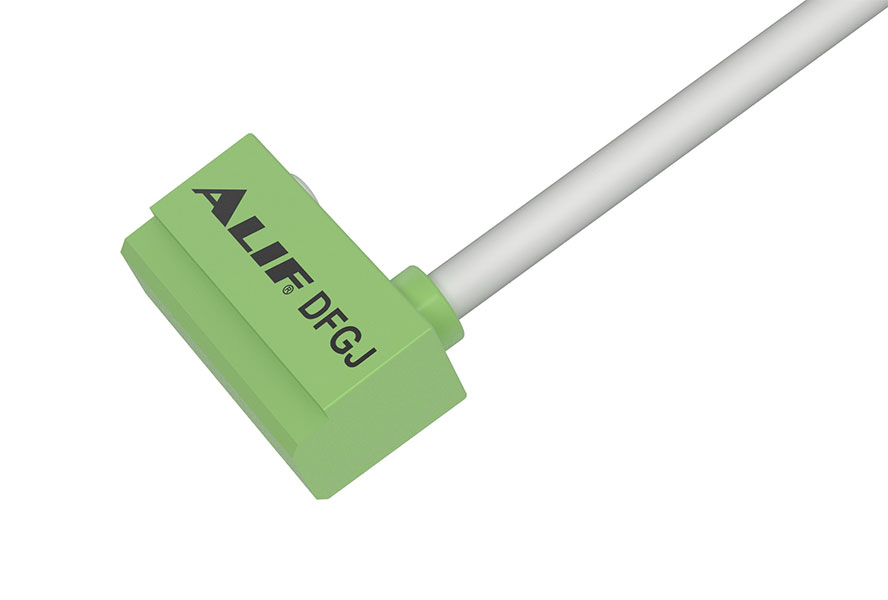

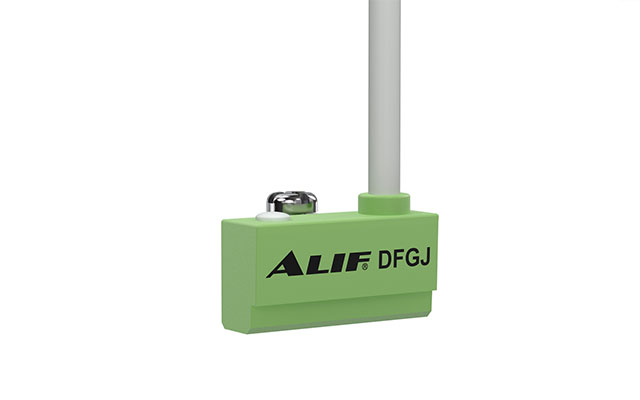

DFGJ series magnetic sensor

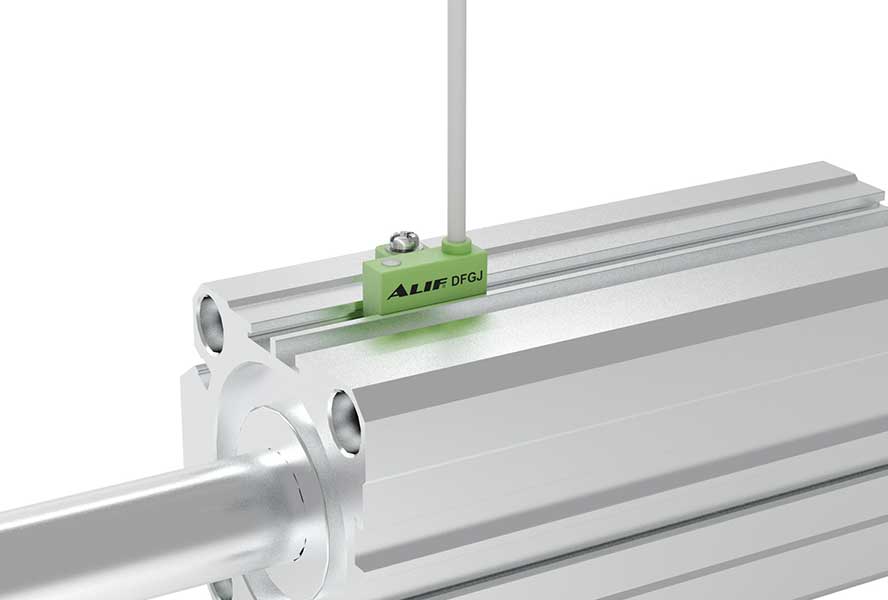

DFGJ series L-slot cylinder specially used for AIRTAC 7.1*3.2, which can replace AIRTAC DS1-J; avoid equipment collision, and the design and wiring of the upper outlet are more flexible.

Get DFGJ Magnetic Cylinder Sensor Price Document Download

Specification of DFGJ Magnetic Cylinder Sensor

Model	DFGJ	DFGJN	DFGJP
Switching Logic	Normally Open	Solid State Output, Normally Open
Output Type	2 Wire Solid State	NPN Current Sinking	PNP Current Sinking
Voltage Range	10～30V DC	5～30V DC
Sensor Current	1～50 mA	0～200 mA
Switch Rating	1.5 W Max.	6 W Max.
Consumption	/	3 mA Max.
Voltage Drop	2.65V Max.@50mA	0.5V Max.@200mA
Leakage Current	90 μA Max.@28V	0.01 mA Max.
Indicator	Red LED	Red LED	Green LED
Cable	Φ3.3, 2C, Grey Oil-Resistant PVC	Φ3.3, 3C, Grey Oil-Resistant PVC
Sensitivity	50～800 Gauss	50～800 Gauss
Sensor Frequency	900Hz	900Hz
Temperature	-10～70℃	-10～70℃
Shock	50G	50G
Vibration	9G	9G
Ingress Protection	IP68 (BJ-R200810105A-04)	IP68 (BJ-R200810105A-04)
Protection Circuit	Surge Suppression	Power Reverse Polarity; Surge Suppression
CE Certificate NO.	E8A 17 04 53334 007	E8A 17 04 53334 008
CNEx Certificate NO.	CNEx21.2238X	CNEx21.2239X
RoHS2.0 NO.	RoHS 2011/65/EU & (EU) 2015/863
Reach NO.	(EC) N 1907/2006 (REACH)

Features of DFGJ Magnetic Cylinder Sensor

The shape and structure are closely fitted with the AIRTAC L-slot cylinder, and the installation is firm.

The upper outlet design made by ALIF Sensor makes the wiring more flexible.

Description of DFGJ Magnetic Cylinder Sensor

waterproof magnetic reed switch

reed switch for cylinder

reed switch sensor for cylinder
