AG-39 Magnetic Cylinder Sensor

Name: AG-39 Magnetic Cylinder Sensor
Brand: ALIF TECH. CO., Ltd.

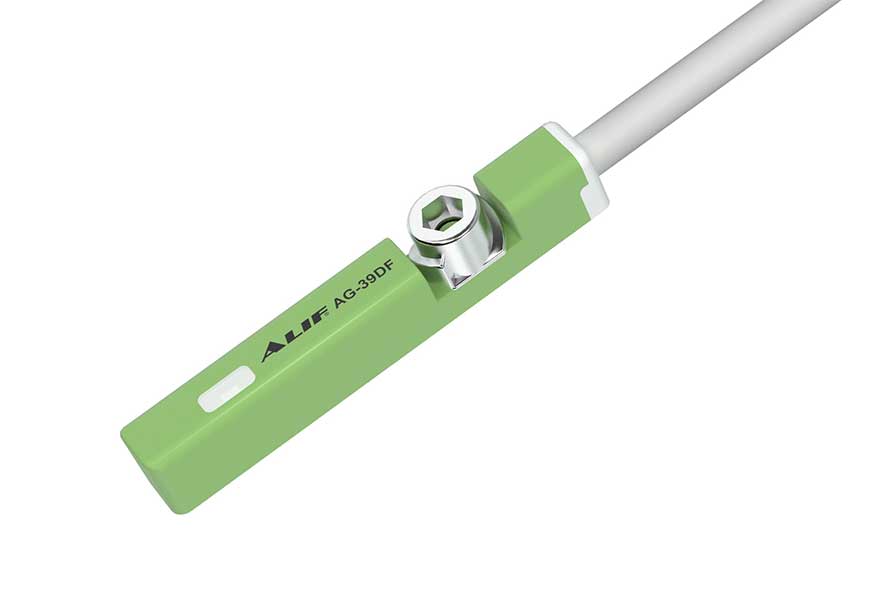

AG-39 series magnetic sensor

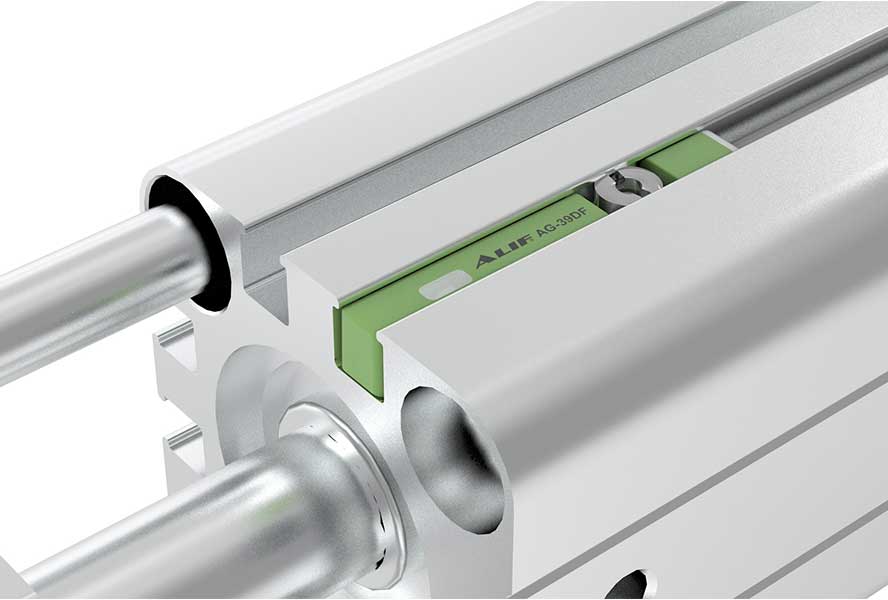

AG-39 series adopts special peak-shaped screws, which can be used for most brands of T-slot cylinders such as FESTO, SMC, PARKER; the way of direct installation above the groove can save users a lot of loading and unloading time. AG-39 can be used with clamps for standard cylinders such as tie rod, mickeymouse type and round type.

Get AG-39 Magnetic Cylinder Sensor Price Document Download

Specification of AG-39 Magnetic Cylinder Sensor

Model	AG-39DF	AL-39N	AL-39P
Switching Logic	Normally Open	Solid State Output, Normally Open
Output Type	2 Wire Solid State	NPN Current Sinking	PNP Current Sinking
Voltage Range	10～30V DC	5～30V DC
Sensor Current	1～50 mA	0～200 mA
Switch Rating	1.5 W Max.	6 W Max.
Consumption	/	3 mA Max.@24V
Voltage Drop	2.65V Max.@50mA DC	0.5V Max.@200mA DC
Leakage Current	90 μA Max.@28V	0.01 mA Max.
Indicator	Red LED	Red LED	Green LED
Cable	Φ2.8, 2C, Grey Oil-Resistant PUR	Φ2.8, 3C, Grey Oil-Resistant PUR
Sensitivity	40～800 Gauss	40～800 Gauss
Sensor Frequency	900Hz	900Hz
Temperature	-10～70℃	-10～70℃
Shock	50G	50G
Vibration	9G	9G
Ingress Protection	IP68 (BJ-R200810105A-02)	IP68 (BJ-R200810105A-02)
Protection Circuit	Surge Suppression	Power Reverse Polarity; Surge Suppression
CE Certificate NO.	E8A 17 04 53334 007	E8A 17 04 53334 008
CNEx Certificate NO.	CNEx21.2238X	CNEx21.2239X
RoHS2.0 NO.	RoHS 2011/65/EU & (EU) 2015/863
Reach NO.	(EC) N 1907/2006 (REACH)

Features of AG-39 Magnetic Cylinder Sensor

The upper insertion method, the installation is fast and the operation time is saved.

High versatility, all brand T-groove cylinders are common.

Description of AG-39 Magnetic Cylinder Sensor

magnetic induction sensor

pneumatic magnetic sensor

magnetic sensor for pneumatic cylinder
