AG-38 Magnetic Cylinder Sensor

Name: AG-38 Magnetic Cylinder Sensor
Brand: ALIF TECH. CO., Ltd.

AG-38 series magnetic sensor

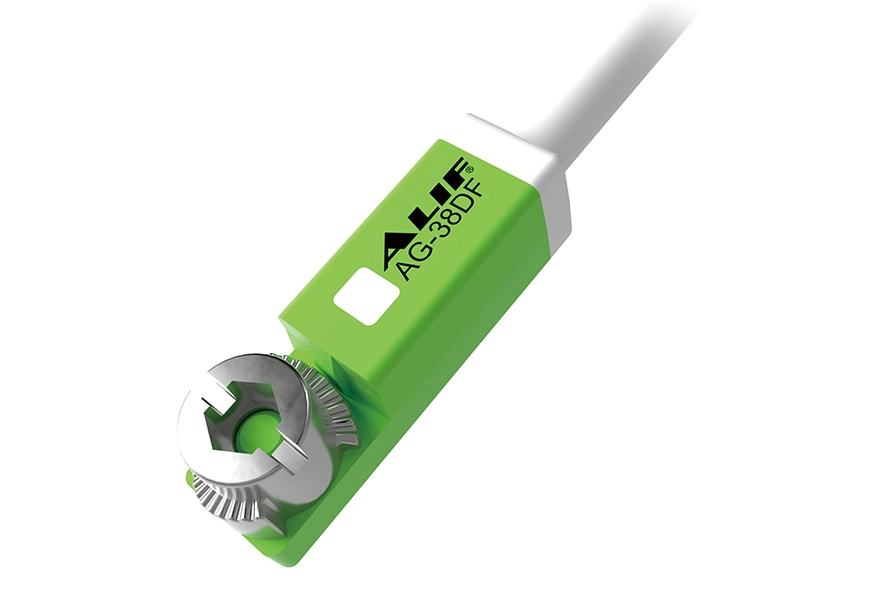

The AG-38 series is an upgraded version of the AG-39 series. It continues the characteristics that can be used in most brands of T-slot cylinders such as FESTO, SMC, PARKER, etc. The strengthened structure makes the reed switch for pneumatic cylinder more reliable and durable, and the shortened The length also makes it more suitable for short stroke cylinders.

Get AG-38 Magnetic Cylinder Sensor Price Document Download

Specification of AG-38 Magnetic Cylinder Sensor

Model	AG-38DF	AG-38N	AG-38P
Switching Logic	Normally Open	Solid State Output, Normally Open
Output Type	2 Wire Solid State	NPN Current Sinking	PNP Current Sinking
Voltage Range	10～30V DC	5～30V DC
Sensor Current	1～50 mA	0～100 mA
Switch Rating	1.5 W Max.	3W Max.
Consumption	/	3 mA Max.@24V
Voltage Drop	2.65V Max.@50mA DC	0.8V Max.@100mA DC
Leakage Current	90 μA Max.@28V	0.01 mA Max.
Indicator	Red LED	Red LED	Green LED
Cable	Φ2.8, 2C, Grey Oil-Resistant PVC	Φ2.8, 3C, Grey Oil-Resistant PVC
Sensitivity	40～800 Gauss	40～800 Gauss
Sensor Frequency	900Hz	900Hz
Temperature	-10～70℃	-10～70℃
Shock	50G	50G
Vibration	9G	9G
Ingress Protection	IP68 (GB/T4208-2017)	IP68 (GB/T4208-2017)
Protection Circuit	Surge Suppression	Power Reverse Polarity; Surge Suppression
CE Certificate NO.	E8A 17 04 53334 007	E8A 17 04 53334 008
CNEx Certificate NO.	CNEx21.2238X	CNEx21.2239X
RoHS2.0 NO.	RoHS 2011/65/EU & (EU) 2015/863
Reach NO.	(EC) N 1907/2006 (REACH)

Features of AG-38 Magnetic Cylinder Sensor

Miniature appearance design increases the flexibility of equipment space layout.

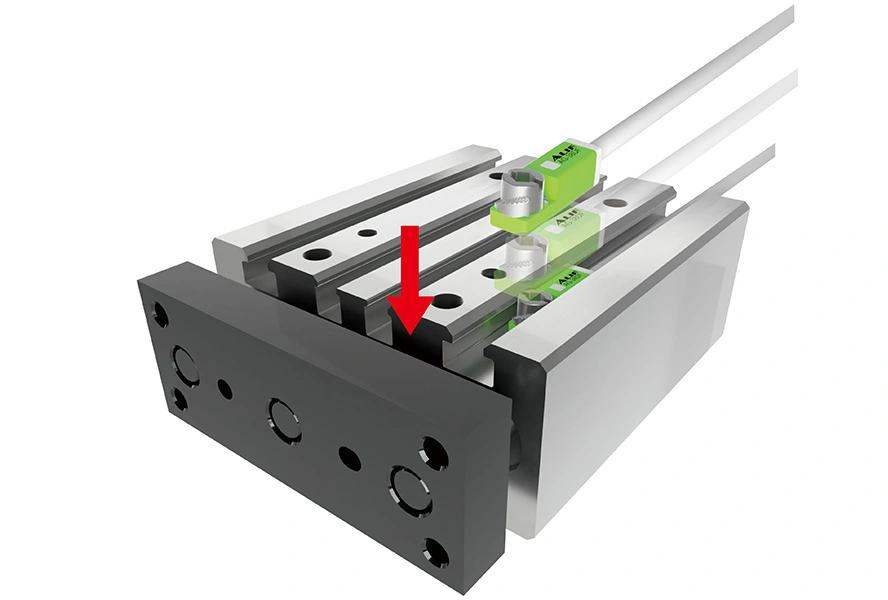

The upper insertion method, the installation is fast and the operation time is saved.
