AG-59 Magnetic Cylinder Sensor

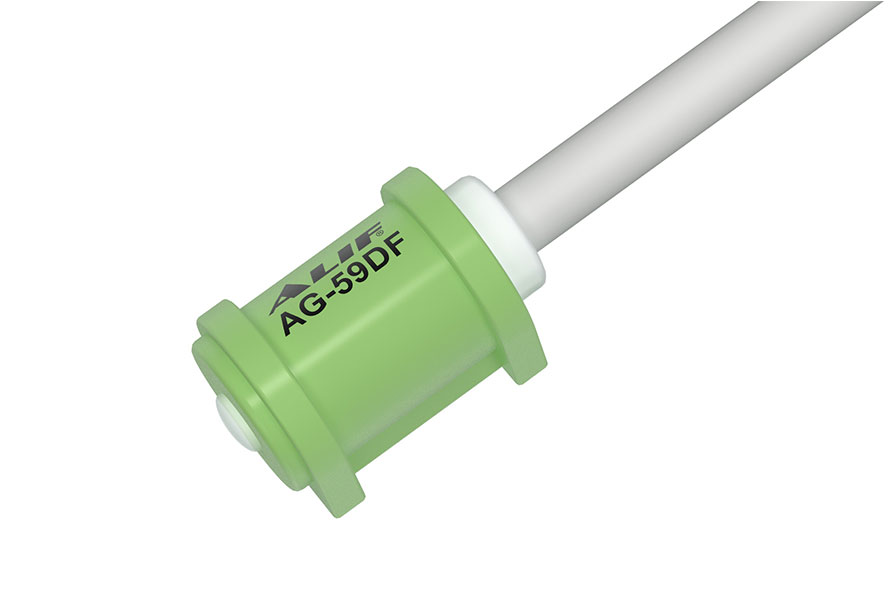

AG-59 series magnetic sensor

The AG-59 series is optimized in the housing length of the AG-49 series, and inherits the characteristics of the AG-49 series' high versatility, convenient installation and firmness. It is the preferred magnetic pneumatic cylinder reed switch for short-stroke standard cylinders.

ac magnetic field sensor1
ac magnetic field sensor2

Specification of AG-59 Magnetic Cylinder Sensor

ModelAG-59 DFAG-59 NAG-59 P
Switching LogicNormally OpenSolid State Output, Normally Open
Output Type2 Wire Solid StateNPN Current SinkingPNP Current Sinking
Voltage Range10~30V DC5~30V DC
Sensor Current1~50 mA0~100 mA
Switch Rating1.5 W Max.3W Max.
Consumption/3 mA Max.@24V
Voltage Drop2.65V Max.@50mA DC0.8V Max.@200mA DC
Leakage Current90 μA Max.@28V0.01 mA Max.
IndicatorRed LEDRed LEDGreen LED
CableΦ3.3, 2C, Grey Oil-Resistant PVCΦ3.3, 3C, Grey Oil-Resistant PVC
Sensitivity40~800 Gauss40~800 Gauss
Sensor Frequency 900Hz900Hz
Temperature-10~70℃-10~70℃
Shock50G50G
Vibration9G9G
Ingress ProtectionIP68 (GB/T4208-2017)IP68 (GB/T4208-2017)
Protection CircuitSurge SuppressionPower Reverse Polarity; Surge Suppression
CE Certificate NO.E8A 17 04 53334 007E8A 17 04 53334 008
CNEx Certificate NO.CNEx21.2238XCNEx21.2239X
RoHS2.0 NO. RoHS 2011/65/EU & (EU) 2015/863
Reach NO.(EC) N 1907/2006 (REACH)


Features of AG-59 Magnetic Cylinder Sensor

ac magnetic field sensor

Miniature exterior design increases the flexibility of equipment space layout.

sensor pneumatic cylinder

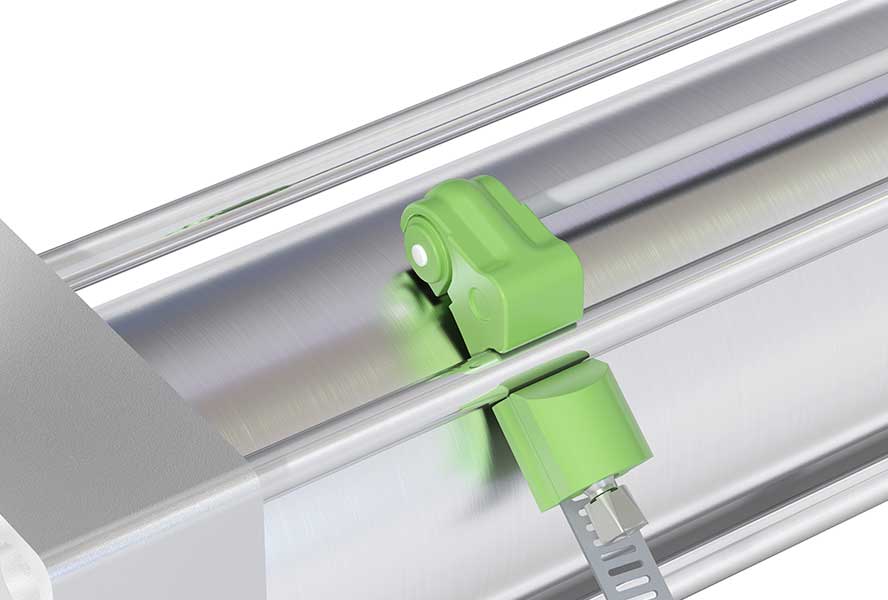

AG-59 is a proximity switch magnetic sensor that has a variety of types of fixtures that can be matched, suitable for a variety of cylinders.
