AG-22 Magnetic Pneumatic Cylinder Position Sensor

Name: AG-22 Magnetic Cylinder Sensor
Brand: ALIF TECH. CO., Ltd.

AG-22 series magnetic cylinder position sensors

AG-22 pneumatic cylinder with position sensor series is specially used for AIRTAC 4.35*4.5 square groove, the top outlet design gives the equipment more layout ideas; the compact structure is only 9.5mm in length, which makes the sensor with cylinder position sensor symptoms especially suitable for the selection of ultra-short stroke cylinders.

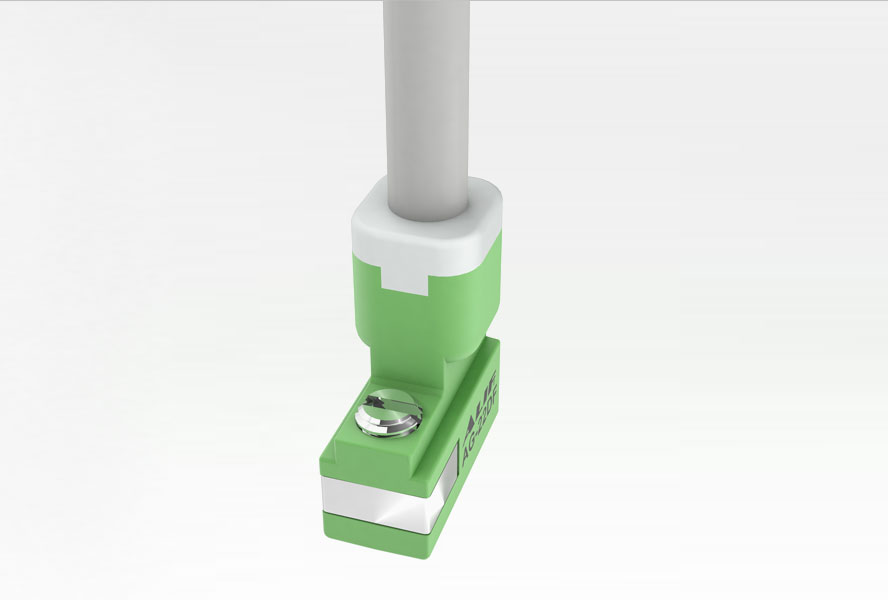

pneumatic cylinder linear position sensor 1

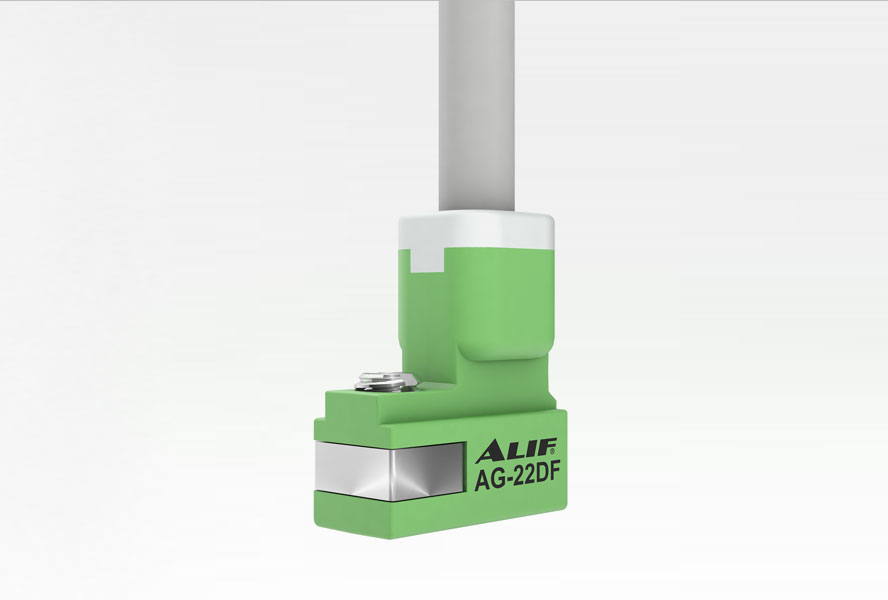

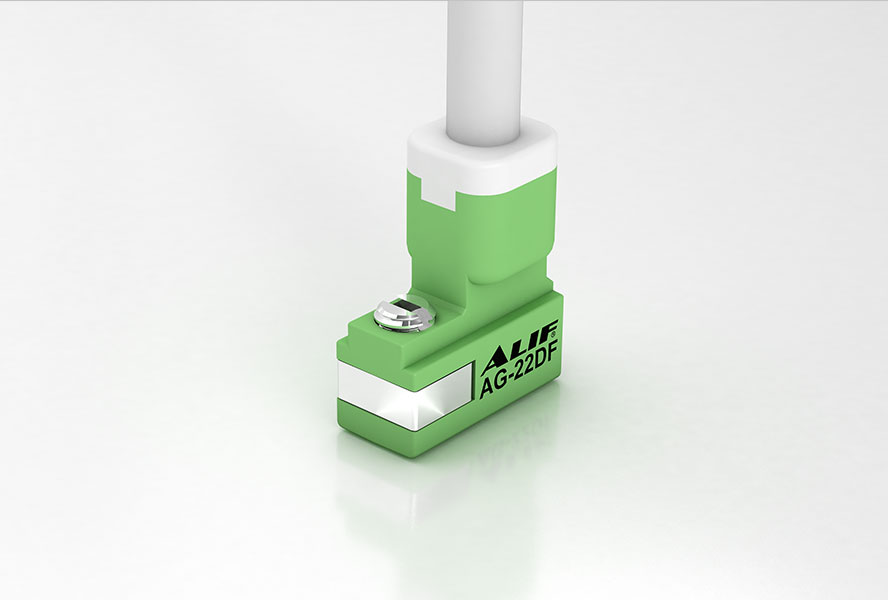

pneumatic cylinder with position sensor 1

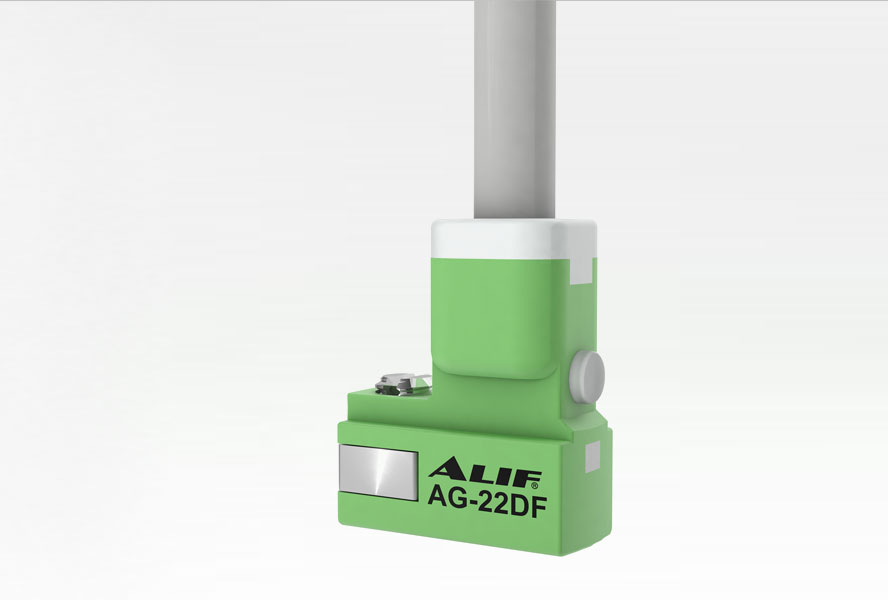

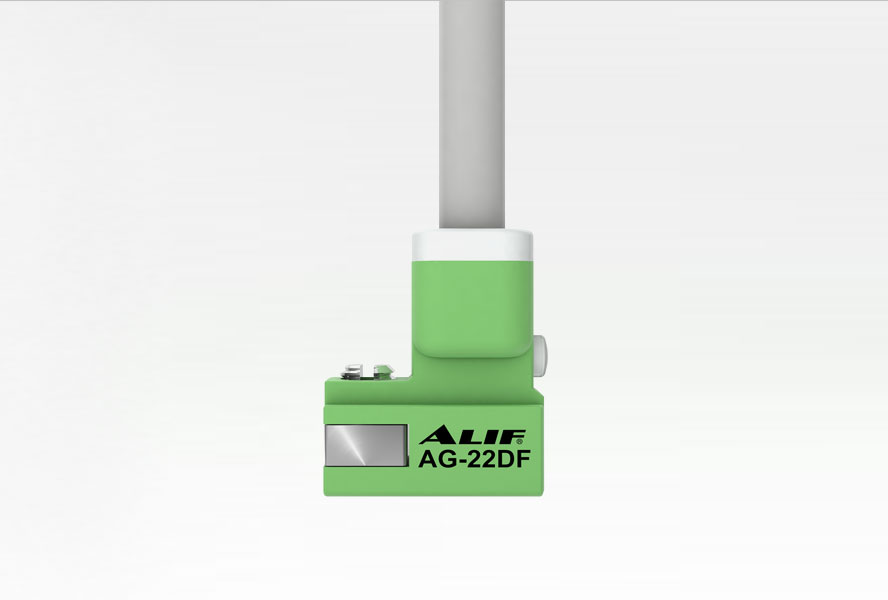

pneumatic cylinder linear position sensor 2

Get AG-22 Magnetic Pneumatic Cylinder Position Sensor Price Document Download

AG-22 Magnetic Cylinder Position Sensor Specifications

Model	AG-22DF/AG-29DF	AG-22N/AG-29N	AG-22P/AG-29P
Switching Logic	Normally Open	Solid State Output, Normally Open
Output Type	2 Wire Solid State	NPN Current Sinking	PNP Current Sinking
voltage Range	10～30V DC	5～30V DC
Sensor Current	1～50 mA	0～100 mA
Switch Rating	1.5 W Max.	3 W Max.
Consumption	/	3 mA Max.@24V
Voltage Drop	2.65V Max.@50mA DC	0.5V Max.@100mA DC
Leakage Current	90 μA Max.@28V	0.01 mA Max.
Indicator	Red LED	Red LED	Green LED
Cable	2.8∮, 2C, G Rey Oil-Resistant PVC	2.8∮, 3C, Grey Oil-Resistant PVC
Sensitivity	40～800 Gauss	40～800 Gauss
Sensor Frequency	1000Hz	1000Hz
Temperature	-10～70℃	-10～70℃
Shock	50G	50G
Vibration	9G	9G
Ingress Protection	IP67 (GB/T4208-2017)	IP67 (GB/T4208-2017)
Protection Circuit	Surge Suppression	Power Reverse Polarity; Surge Suppression
CE Certificate NO.	E8A 17 04 53334 007	E8A 17 04 53334 008
CNEx Certificate NO.	CNEx21.2238X	CNEx21.2239X
RoHS2.0 NO.	RoHS 2011/65/EU & (EU) 2015/863
Reach NO.	(EC) N 1907/2006 (REACH)

AG-22 Magnetic Pneumatic Cylinder Position Sensor

pneumatic cylinder linear position sensor

The compact structure design of the magnetic sensors for cylinders series increases the flexibility of the equipment space layout.

features of ag 22 magnetic cylinder sensor

Top outlet design makes AG-22 magnetic pneumatic cylinder linear position sensor perfect for flexible wiring and easy installation.
